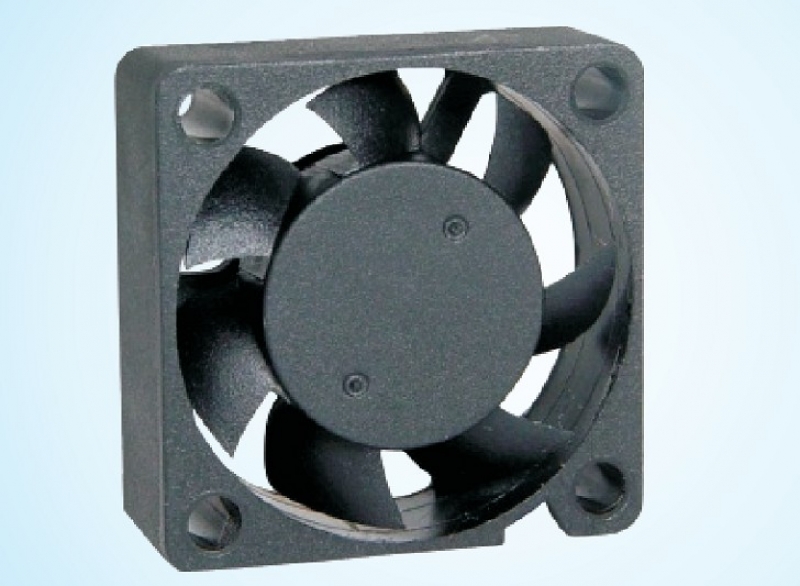

DC Fan 25x25x07mm
- Frame and Impeller : Thermal Plastic,UL94V-0
- Lead Wires : UL Type RED Black
- Operation Temperature(℃) : -10℃~70℃ 35%~85%RH
- Storage Temperature(℃) : -40℃~80℃ 35%~85%RH
- Motor protection :
- Impedance Protected
- Reverse Polarity Protected
- Automatic Restart.

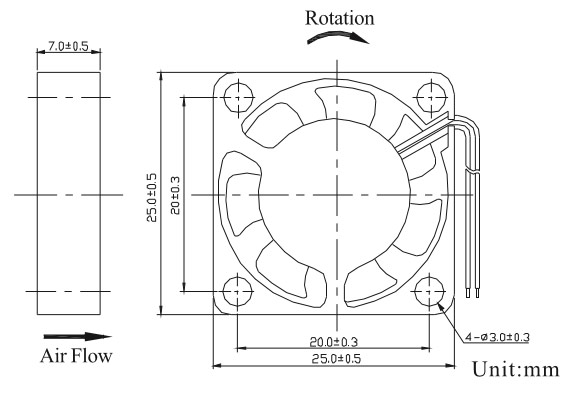

Dimensions Drawing
Performance Curves
| Listed Model | Bearing System | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Static Pressure | Noise Level | Available Features Optional | weight | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | A | RPM | Flow | mmH2O | dBA | Tachometer Output | Rotation Detector | Thermeal Control | Pulse Width Modulation | g | ||
| SEH2507S5A | Sleeve | 5 | 3.5~5.75 | 0.06 | 10000 | 1.9 | 3.0 | 20 | 5 | ||||
| SEM250S5A | 3.5~5.75 | 0.08 | 9000 | 1.6 | 2.5 | 19 | |||||||
| SEL2507S5A | 3.5~5.75 | 0.10 | 8000 | 1.3 | 2.0 | 17 | |||||||
| SEH2507B5A | Ball | 3.5~5.75 | 0.06 | 10000 | 1.9 | 3.0 | 20 | ||||||
| SEM250B5A | 3.5~5.75 | 0.08 | 9000 | 1.6 | 2.5 | 19 | |||||||
| SEL2507B5A | 3.5~5.75 | 0.10 | 8000 | 1.3 | 2.0 | 17 | |||||||
| SEH2507S1A | Sleeve | 12 | 6.0~13.8 | 0.05 | 10000 | 1.9 | 3.0 | 20 | |||||
| SEM250S1A | 6.0~13.8 | 0.04 | 9000 | 1.6 | 2.5 | 19 | |||||||
| SEL2507S1A | 6.0~13.8 | 0.03 | 8000 | 1.3 | 2.0 | 17 | |||||||
| SEH2507B1A | Ball | 6.0~13.8 | 0.05 | 10000 | 1.9 | 3.0 | 20 | ||||||
| SEM250B1A | 6.0~13.8 | 0.04 | 9000 | 1.6 | 2.5 | 19 | |||||||
| SEL2507B1A | 6.0~13.8 | 0.03 | 8000 | 1.3 | 2.0 | 17 | |||||||
