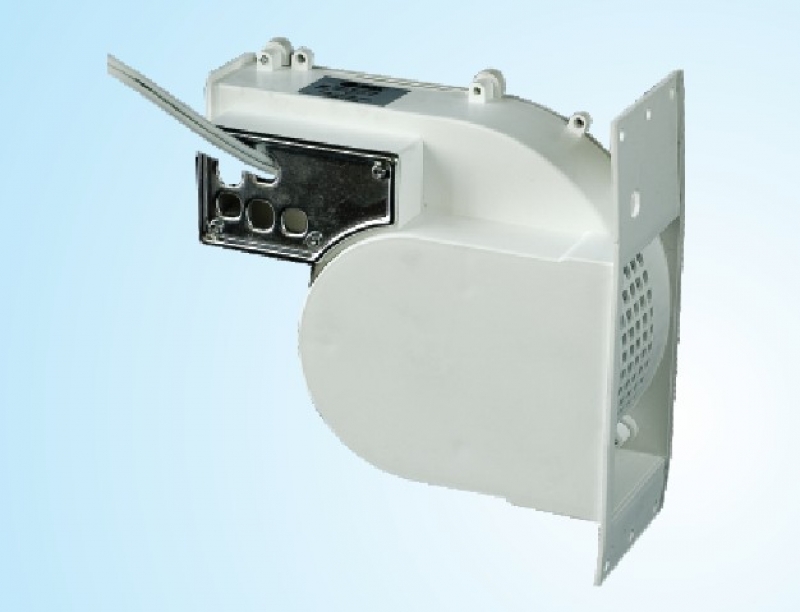

AC 1177 Series Blower

Inquiry This Product

Full Name(*)
Please type your full name.

E-mail(*)
Invalid email address.

Phone
Invalid Input

Company
Invalid Input

Massage(*)
Invalid Input

Captcha(*)
Captcha RefreshInvalid Input

  • Size : 205mmx206mmx77mm
  • Airflow : 90~111 m3/hr 57~66 CFM
  • Weight : 1086g
  • Noise : 52~62dBA
  • Impeller : PP UL94V-O Reinforced Plastic
  • Frame : PP UL94V-O Reinforced Plastic
  • Lead Wire : SPT-2(W) OR Customize design (Optional)
  • Motor : Capacitor-Run Induction Motor
  • Insulatoin : Class B,T·P·F
  • Safety : UL, CUL, CE
  • Operation Temperature : -30℃~+70℃

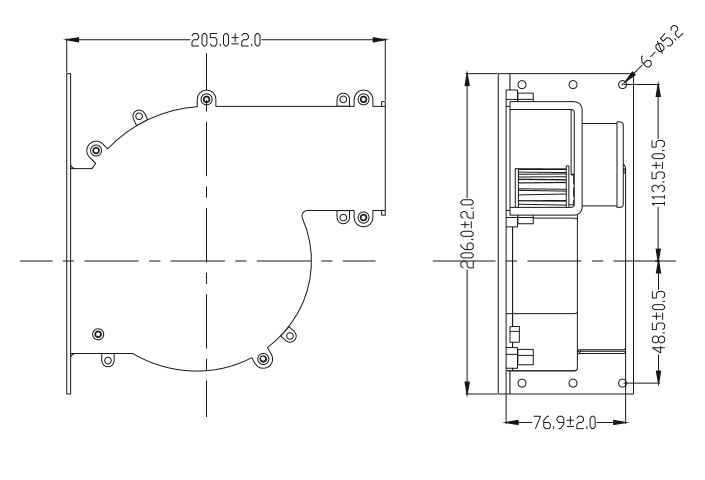

Dimensions Drawing

MODELBearing SystemVoltage (V)Frrq (Hz)Current (A)Power (W)Speed (RPM)Noise (Dba)AirflowStatic Pressure (mmH2O)Weight (Gram)
(M3/hr)(CFM)
SCH1177S6A Sleeve 230 50 0.24 42 2650 57 90 53.2 16.6 1086
SCH1177S3A 120 60 0.49 57 3000 66 111 65.5 25.6

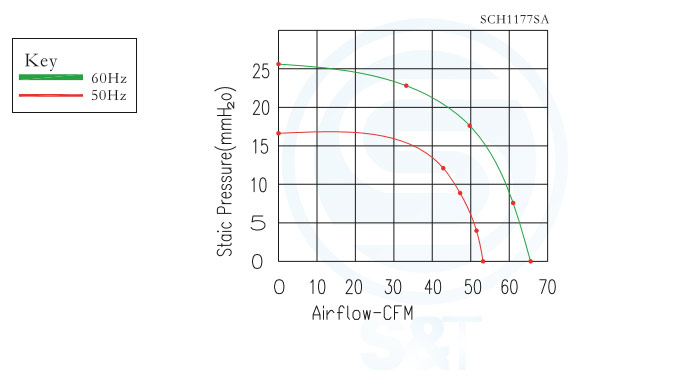

Performance Curves
