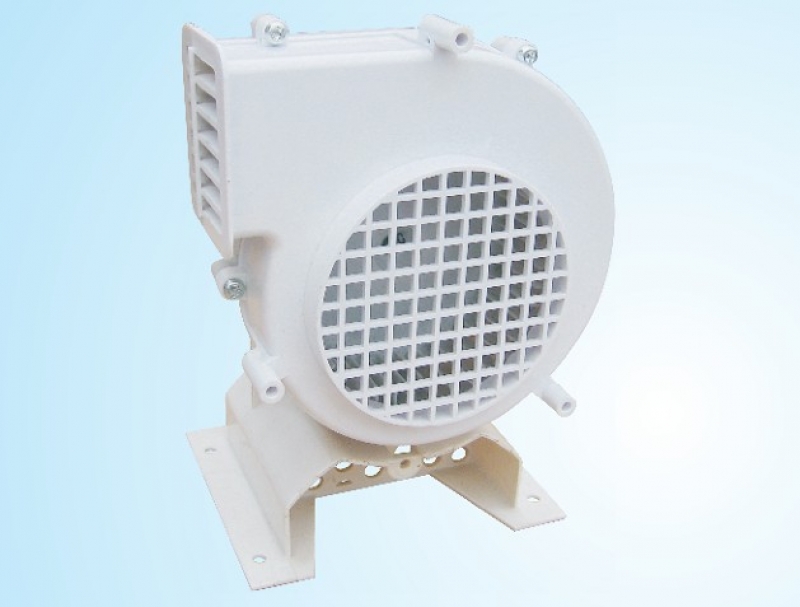

AC 9683 Series Blower

Inquiry This Product

Full Name(*)
Please type your full name.

E-mail(*)
Invalid email address.

Phone
Invalid Input

Company
Invalid Input

Massage(*)
Invalid Input

Captcha(*)
Captcha RefreshInvalid Input

  • Size : 133mmx183mmx131mm
  • Airflow : 153~187 m3/hr 90~110 CFM
  • Weight : 800g
  • Noise : 52-53dBA
  • Impeller : PP UL94V-O Reinforced Plastic
  • Frame : PP UL94V-O Reinforced Plastic
  • Terminals : 0.5mm
  • Lead Wire : SPT-2(W) OR Customize design (Optional)
  • Motor : Capacitor-Run Induction Motor
  • Insulatoin : Class B. Thermally Protected F.
  • Safety : UL, CSA
  • Operation Temperature : -35℃-+70℃

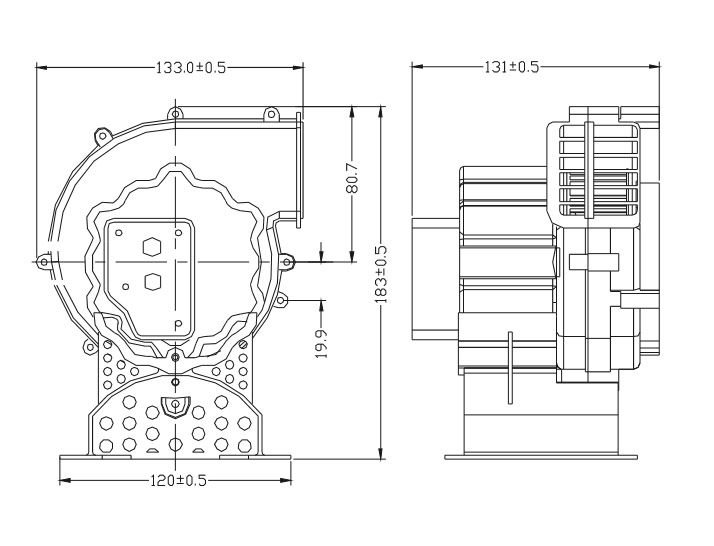

Dimensions Drawing

MODELBearing SystemVoltage (V)Frrq (Hz)Current (A)Power (W)Speed (RPM)Noise (Dba)AirflowStatic Pressure (mmH2O)Weight (Gram)
(M3/hr)(CFM)
SBH9683S6A Sleeve 220~240 50/60 0.26 53 2800 52 48 29 18.5 800
SBH9683S3A 100~120 50/60 0.60 41.4 2900 53 51 30 19.8

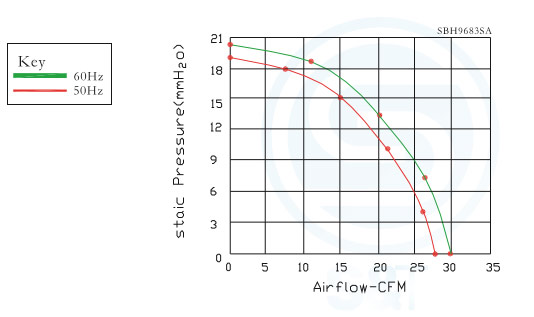

Performance Curves
