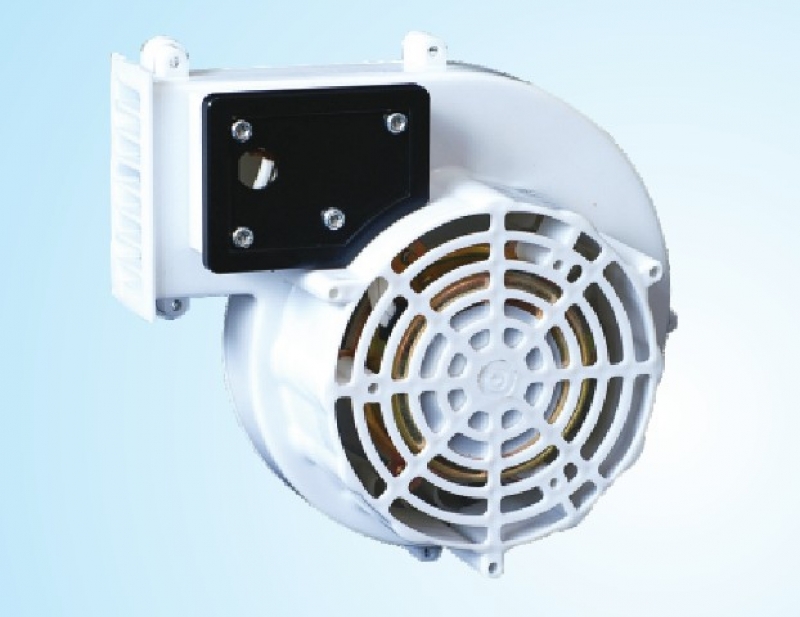

AC 1077 Series Blower

Inquiry This Product

Full Name(*)
Please type your full name.

E-mail(*)
Invalid email address.

Phone
Invalid Input

Company
Invalid Input

Massage(*)
Invalid Input

Captcha(*)
Captcha RefreshInvalid Input

  • Size : 178mmx165mmx77mm
  • Airflow : 43~47 m3/hr 23~30 CFM
  • Weight : 730g
  • Noise : 45-53dBA
  • Impeller : PP UL94V-O Reinforced Plastic
  • Frame : PP UL94V-O Reinforced Plastic
  • Terminals : 0.5mm
  • Lead Wire : SPT-2(W) OR Customize design (Optional)
  • Motor : Shaded pole Induction Motor
  • Insulatoin : Class B. Thermally Protected F.
  • Safety : UL, CUL, CE
  • Operation Temperature : -10℃-+70℃

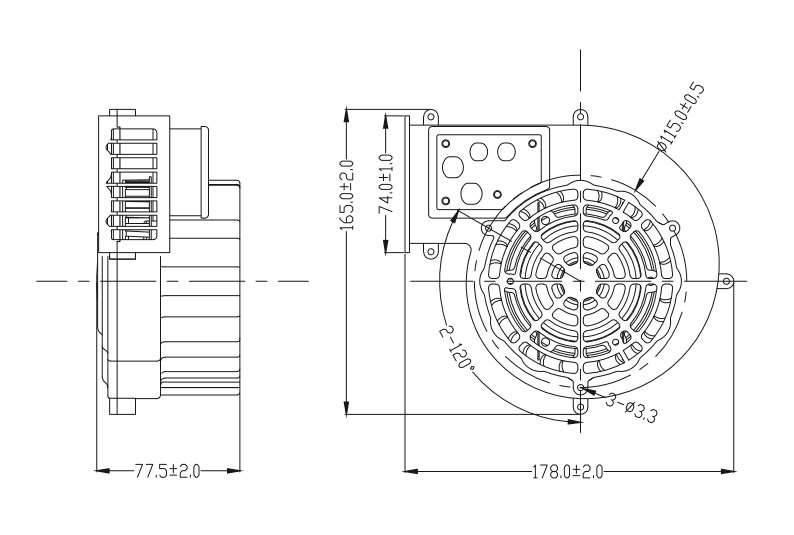

Dimensions Drawing

MODELBearing SystemVoltage (V)Frrq (Hz)Current (A)Power (W)Speed (RPM)Noise (Dba)AirflowStatic Pressure (mmH2O)Weight (Gram)
(M3/hr)(CFM)
SBH1077S6A Sleeve 220~230 50 0.15 22 2300 45 40 23 13.3 730
SBH1077S3A 120 60 0.43 36 2700 53 51 30 19.8

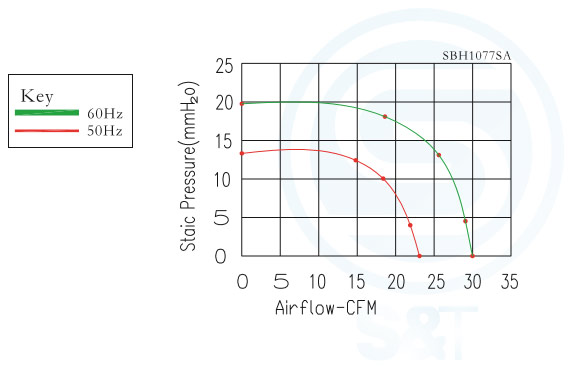

Performance Curves
