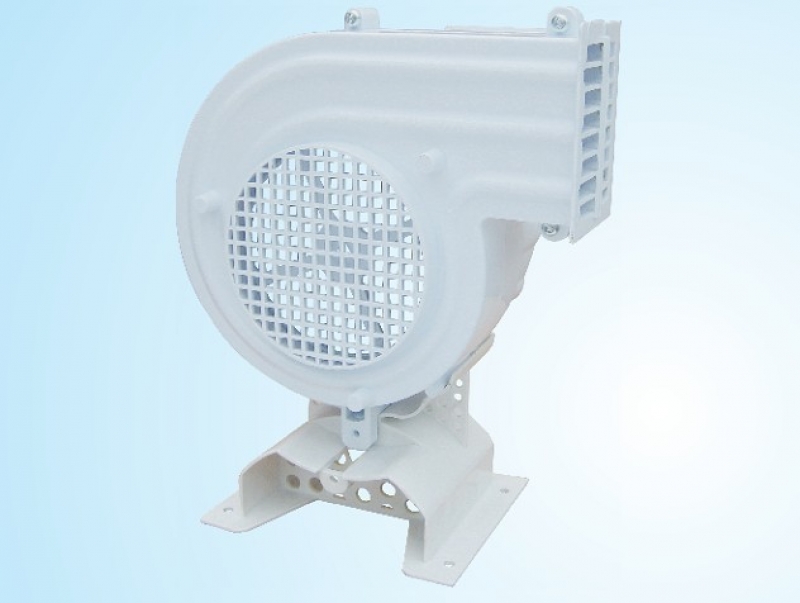

AC 1084 Series Blower

Inquiry This Product

Full Name(*)
Please type your full name.

E-mail(*)
Invalid email address.

Phone
Invalid Input

Company
Invalid Input

Massage(*)
Invalid Input

Captcha(*)
Captcha RefreshInvalid Input

  • Size : 178mmx218mmx84mm
  • Airflow : 59~65 m m3/hr 34~39 CFM
  • Weight : 1050g
  • Noise : 47~58dBA
  • Impeller : PP UL94V-O Reinforced Plastic
  • Frame : PP UL94V-O Reinforced Plastic
  • Lead Wire : SPT-2(W) OR Customize design (Optional)
  • Motor : Capacitor-Run Induction Motor
  • Insulatoin : Class B. Thermally Protected F.
  • Safety : UL, CE
  • Operation Temperature : -35℃~+70℃

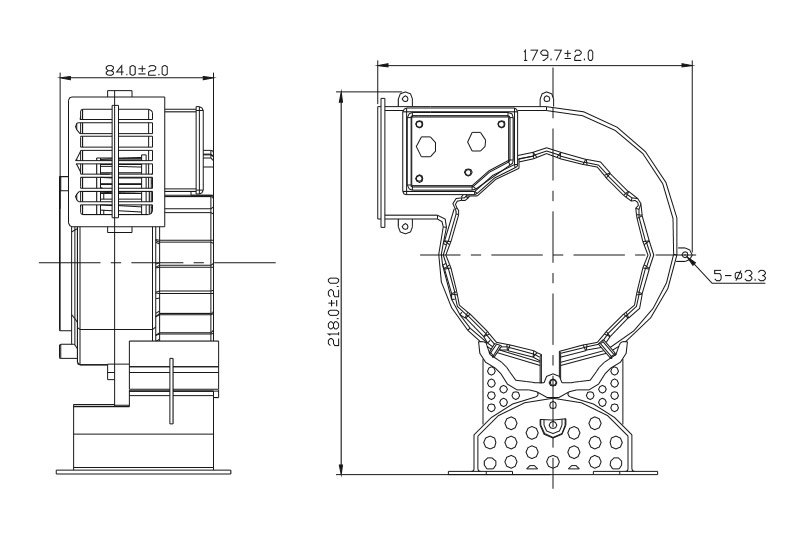

Dimensions Drawing

MODELBearing SystemVoltage (V)Frrq (Hz)Current (A)Power (W)Speed (RPM)Noise (Dba)AirflowStatic Pressure (mmH2O)Weight (Gram)
(M3/hr)(CFM)
SBH1084S6A Sleeve 220~240 50/60 0.17 28 2300 47 59 34.8 13.9 1050
SBH1084S3A 100~120 50/60 0.54 50 2700 58 65 38.5 24.0

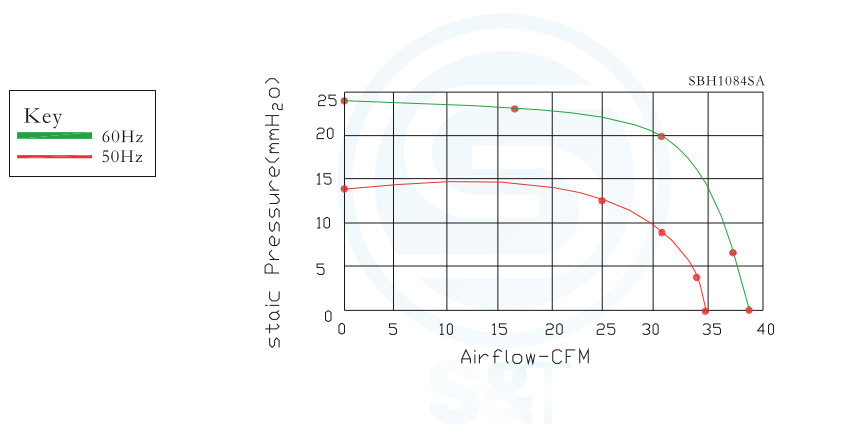

Performance Curves
