DC Fan 30x30x07mm

Inquiry This Product

Full Name(*)
Please type your full name.

E-mail(*)
Invalid email address.

Phone
Invalid Input

Company
Invalid Input

Massage(*)
Invalid Input

Captcha(*)
Captcha RefreshInvalid Input

  • Frame and Impeller : Thermal Plastic, UL94V-0
  • Lead Wires : UL Type RED Black
  • Operation Temperature(℃) : -10℃~70℃ 35%~85%RH
  • Storage Temperature(℃) : -40℃~80℃ 35%~85%RH
  • Motor protection :
    • Impedance Protected
    • Reverse Polarity Protected
    • Automatic Restart.

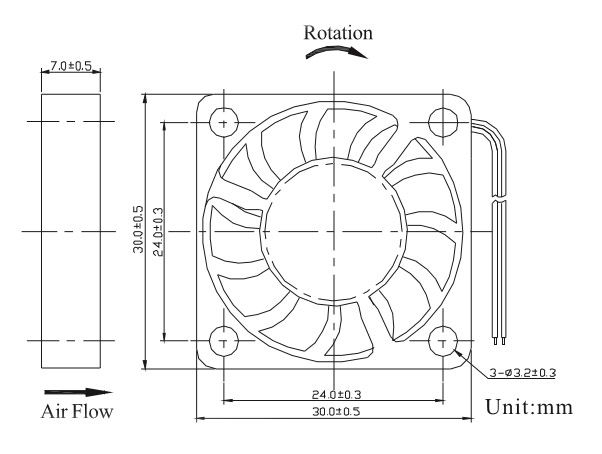

Dimensions Drawing

Dimensions Drawing

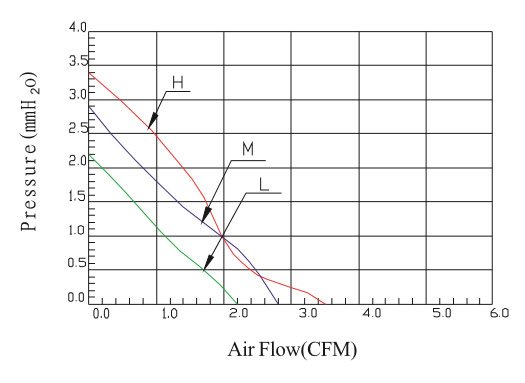

Performance Curves

Performance Curves


Listed ModelBearing SystemRated VoltageOperation VoltageRated CurrentRated SpeedAir FlowStatic PressureNoise LevelAvailable Features Optionalweight
VDCVDCARPMFlowmmH2OdBATachometer OutputRotation DetectorThermeal ControlPulse Width Modulationg
SEH3007S5A Sleeve 5 3.5~5.75 0.22 10500 3.4 3.4 34         6
SEM3007S5A 3.5~5.75 0.17 9000 2.9 2.8 30
SEL3007S5A 3.5~5.75 0.13 7500 2.2 1.9 26
SEH3007B5A Ball 3.5~5.75 0.22 10500 3.4 3.4 34
SEM3007B5A 3.5~5.75 0.17 9000 2.9 2.8 30
SEL3007B5A 3.5~5.75 0.13 7500 2.2 1.9 26
SEH3007S1A Sleeve 12 6.0~13.8 0.12 10500 3.4 3.4 34
SEM3007S1A 6.0~13.8 0.10 9000 2.9 2.8 30
SEL3007S1A 6.0~13.8 0.08 7500 2.2 1.9 26
SEH3007B1A Ball 6.0~13.8 0.12 10500 3.4 3.4 34
SEM3007B1A 6.0~13.8 0.10 9000 2.9 2.8 30
SEL3007B1A 6.0~13.8 0.08 7500 2.2 1.9 26
