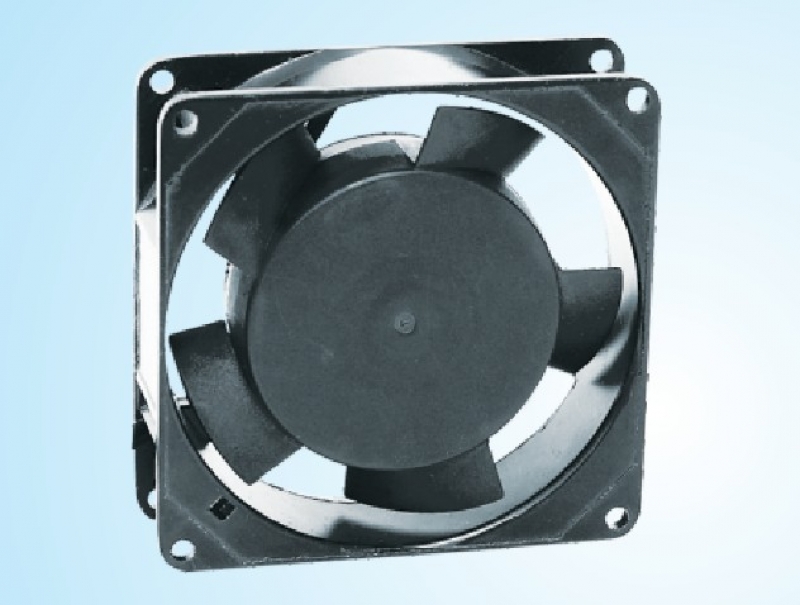

AC 9225 series Axial Fan

Inquiry This Product

Full Name(*)
Please type your full name.

E-mail(*)
Invalid email address.

Phone
Invalid Input

Company
Invalid Input

Massage(*)
Invalid Input

Captcha(*)
Captcha RefreshInvalid Input

  • Size : 92mmx92mmx25.5mm
  • Airflow : 51~63 m3/hr 30~37 CFM
  • Weight : 280g
  • Noise : 37-40dBA
  • Impeller : PA6 UL94V-O Reinforced Plastic
  • Frame : Aluminium Alloy
  • Terminals : 0.5mm
  • Lead Wire : AWG #22 UL1007 OR Customize design (Optional)
  • Motor : Shaded pole Induction Motor
  • Insulatoin : Class B,Z·P·F
  • Safety : UL, CE, CSA
  • Operation Temperature : -10℃-+70℃

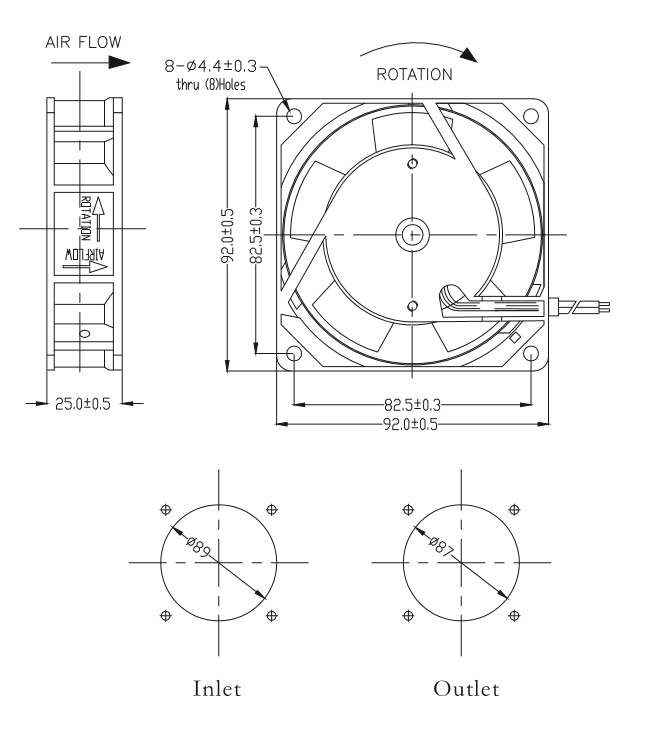

Dimensions Drawing

MODELBearing SystemVoltage (V)Frrq (Hz)Current (A)Power (W)Speed (RPM)Noise (Dba)AirflowStatic Pressure (mmH2O)Weight (Gram)
(M3/hr)(CFM)
SAH9225S6A Sleevel 220~240 50/60 0.07/0.06 12/10 2400/2850 37/40 51/63 30/37 3.3/4.8 280
SAH9225B6A Ball 220~240 50/60 0.07/0.06 12/10 2400/2850 37/40 51/63 30/37 3.3/4.8
SAH9225S3A Sleevel 100~120 50/60 0.17/0.14 16/11 2400/2850 37/40 51/63 30/37 3.3/4.8
SAH9225B3A Ball 100~120 50/60 0.17/0.14 16/11 2400/2850 37/40 51/63 30/37 3.3/4.8

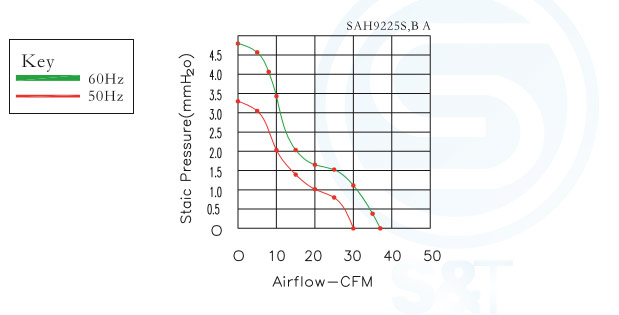

Performance Curves
