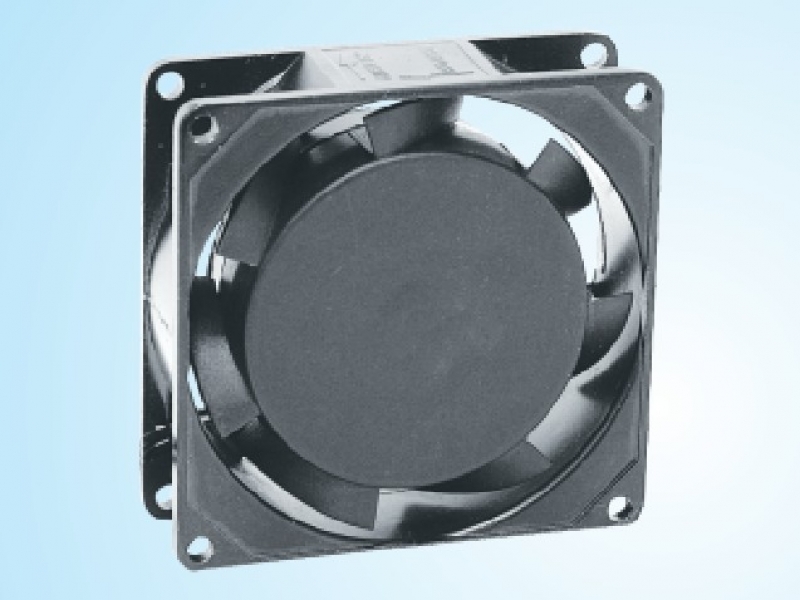

AC 8025 series Axial Fan

Inquiry This Product

Full Name(*)
Please type your full name.

E-mail(*)
Invalid email address.

Phone
Invalid Input

Company
Invalid Input

Massage(*)
Invalid Input

Captcha(*)
Captcha RefreshInvalid Input

  • Size : 80mmx80mmx22.5mm
  • Airflow : 30-37 m3/hr 18-22 CFM
  • Weight : 250g
  • Noise : 30-34dBA
  • Impeller : PA6 UL94V-O Reinforced Plastic
  • Frame : Aluminium Alloy
  • Lead Wire : AWG #22 UL1007 OR Customize design (Optional)
  • Motor : Shaded pole Induction Motor
  • Insulatoin : Class B,Z·P·F
  • Safety : UL, CUL, CE
  • Operation Temperature : -10℃-+70℃

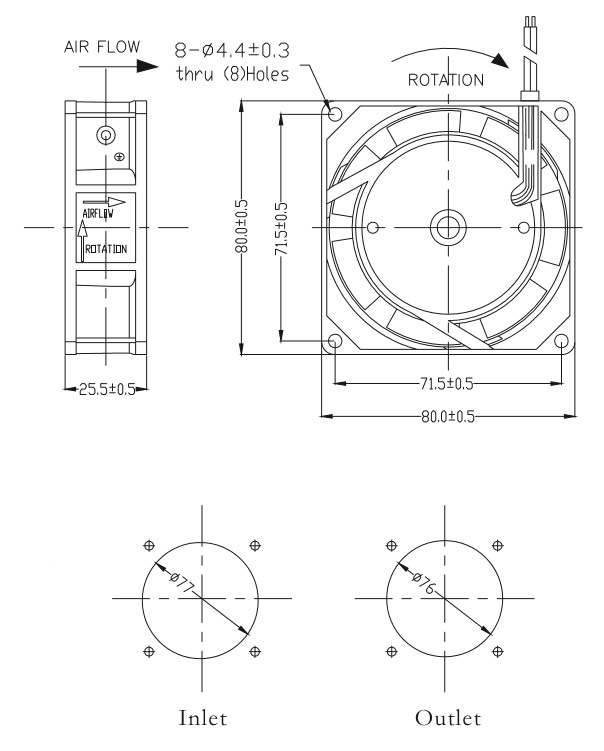

Dimensions Drawing

MODELBearing SystemVoltage (V)Frrq (Hz)Current (A)Power (W)Speed (RPM)Noise (Dba)AirflowStatic Pressure (mmH2O)Weight (Gram)
(M3/hr)(CFM)
SAH8038S6A Sleevel 220~240 50/60 0.09/0.07 14/10 2500/3000 32/37 43/56 30/37 3.4/4.9 340
SAH8038B6A Ball 220~240 50/60 0.09/0.07 14/10 2500/3000 32/37 43/56 30/37 3.4/4.9
SAH8038S3A Sleevel 100~120 50/60 0.15/0.13 14/10 2500/3000 32/37 43/56 30/37 3.4/4.9
SAH8038B3A Ball 100~120 50/60 0.15/0.13 14/10 2500/3000 32/37 43/56 30/37 3.4/4.9

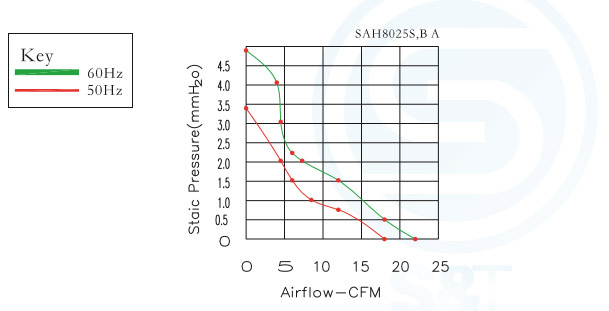

Performance Curves
