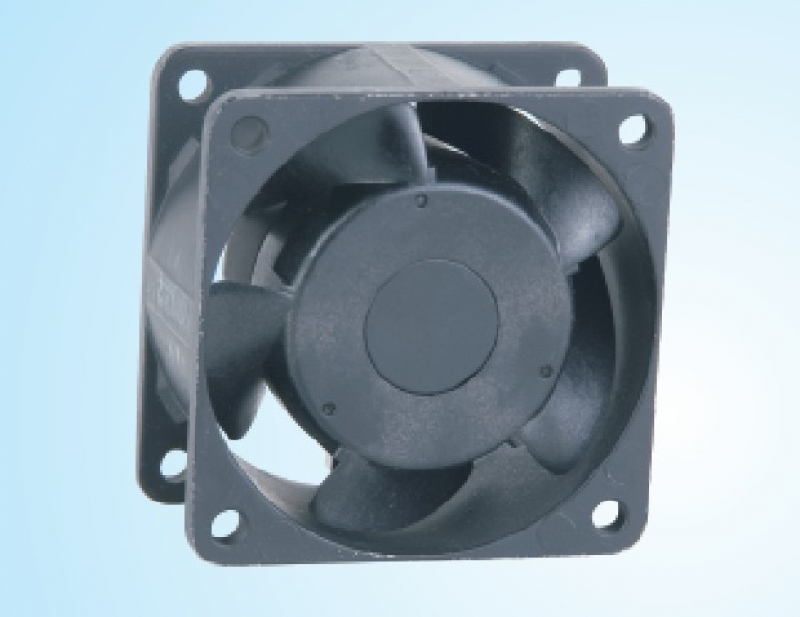

AC 6030 Series Axial Fan

Inquiry This Product

Full Name(*)
Please type your full name.

E-mail(*)
Invalid email address.

Phone
Invalid Input

Company
Invalid Input

Massage(*)
Invalid Input

Captcha(*)
Captcha RefreshInvalid Input

  • Size : 60mmx60mmx30mm
  • Airflow : 13.8-17.5 m3/hr 8.1-10.3 CFM
  • Weight : 145g
  • Noise : 27-28dBA
  • Impeller : PA6 UL94V-O Reinforced Plastic
  • Frame : Aluminium Alloy
  • Terminals : 0.5mm
  • Lead Wire : AWG #22 UL1007 OR Customize design (Optional)
  • Motor : Shaded pole Induction Motor
  • Insulatoin : Class B,Z·P·F
  • Safety : UL, CUL, CE, CSA
  • Operation Temperature : -10℃-+70℃

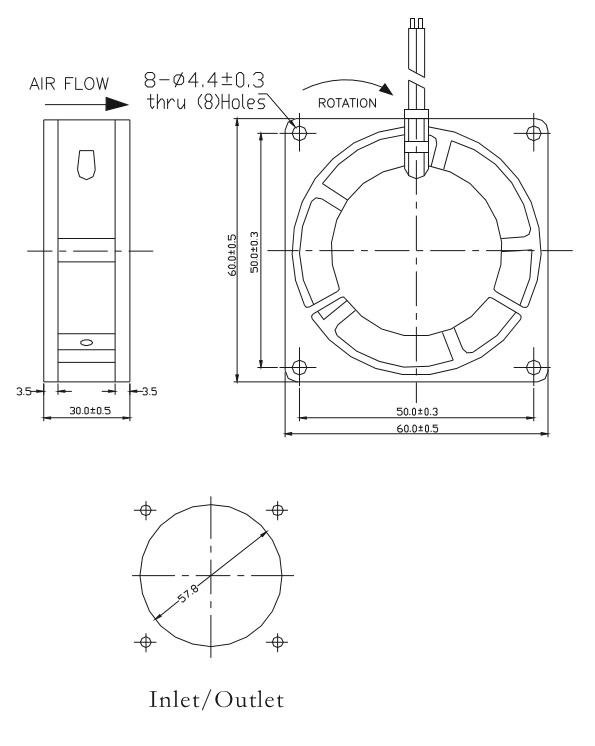

Dimensions Drawing

MODELBearing SystemVoltage (V)Frrq (Hz)Current (A)Power (W)Speed (RPM)Noise (Dba)AirflowStatic Pressure (mmH2O)Weight (Gram)
(M3/hr)(CFM)
SAH6030B6A Ball 220~240 50/60 0.022/0.020 5/4 2550/3100 27/28 13.8/17.5 8.1/10.3 1.7/2.8 145
SAH6030B3A Ball 100~120 50/60 0.035/0.042 5/4 2550/3100 27/28 13.8/17.5 8.1/10.3 1.7/2.8

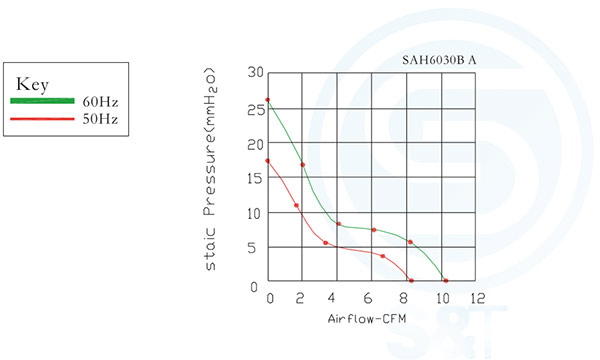

Performance Curves
