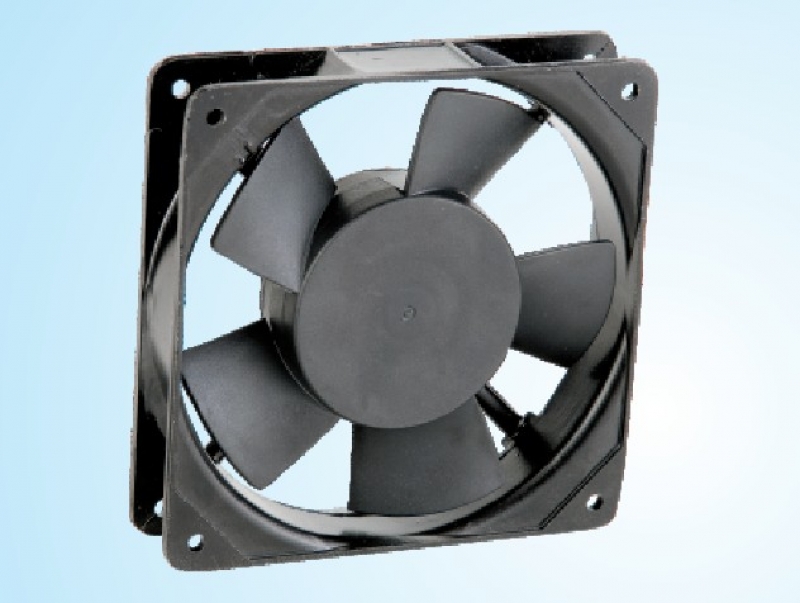

AC 1225 Small chassis Series Axial Fan

Inquiry This Product

Full Name(*)
Please type your full name.

E-mail(*)
Invalid email address.

Phone
Invalid Input

Company
Invalid Input

Massage(*)
Invalid Input

Captcha(*)
Captcha RefreshInvalid Input

  • Size : 120mmx120mmx25mm
  • Airflow : 76~112 m3/hr 45~66 CFM
  • Weight : 314g
  • Noise : 31~32dBA
  • Impeller : PA6 UL94V-O Reinforced Plastic
  • Frame : Aluminium Alloy
  • Terminals : 0.5mm
  • Lead Wire : AWG #22 UL1007 OR Customize design (Optional)
  • Motor : Shaded pole Induction Motor
  • Insulatoin : Class B,Z·P·F
  • Safety : UL, CE, CSA
  • Operation Temperature : -10℃-+70℃

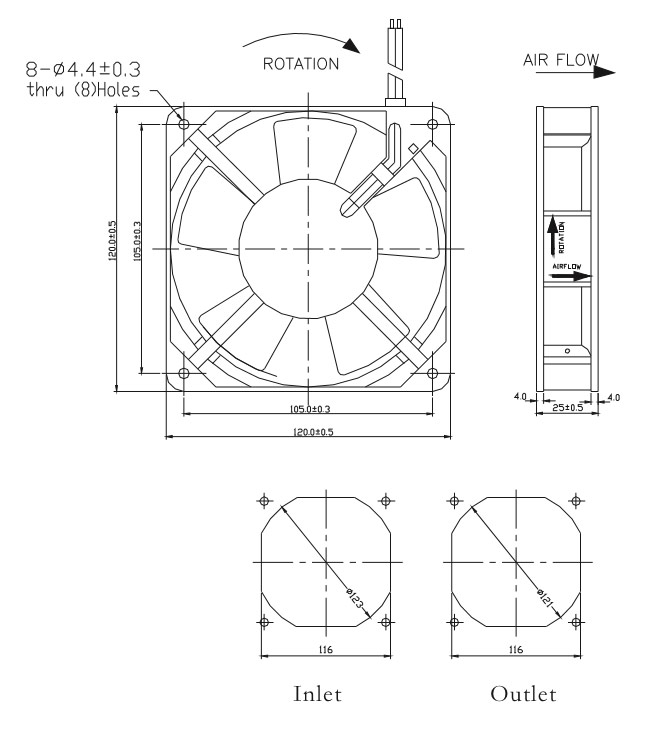

Dimensions Drawing

MODELBearing SystemVoltage (V)Frrq (Hz)Current (A)Power (W)Speed (RPM)Noise (Dba)AirflowStatic Pressure (mmH2O)Weight (Gram)
(M3/hr)(CFM)
SAH1225S6A Sleevel 220~240 50/60 0.13 17/15 2300/2700 39/42 96/112 57/66 3.8/5.0 314
SAM1225S6A 220~240 50/60 0.08 12/15 1800/2400 39/42 96/112 57/66 3.8/5.0
SAH1225S3A 100~120 50/60 0.25 17/15 2300/2700 39/42 96/112 57/66 3.8/5.0
SAM1225S3A 100~120 50/60 0.16 12/15 1800/2400 39/42 96/112 57/66 3.8/5.0
SAH1225B6A Ball 220~240 50/60 0.13 17/15 2300/2700 31/36 76/95 45/56 2.0/1.8
SAM1225B6A 220~240 50/60 0.08 12/15 1800/2400 31/36 76/95 45/56 2.0/1.8
SAH1225B3A 100~120 50/60 0.25 17/15 2300/2700 31/36 76/95 45/56 2.0/1.8
SAM1225B3A 100~120 50/60 0.16 12/15 1800/2400 31/36 76/95 45/56 2.0/1.8

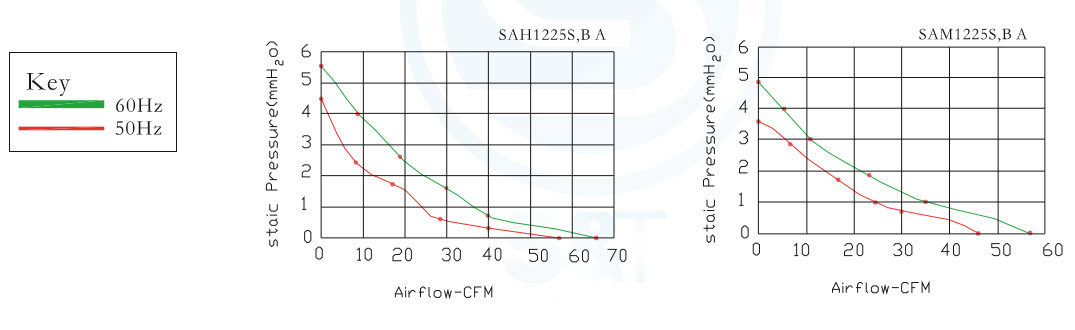

Performance Curves
